Diffraction project datasets GS13221D_3kya

  • Method: MAD
  • Resolution: 1.77 Å
  • Space group: C 2 2 21
Download all images (4.3 GB)

PDB website for 3KYA
PDB validation report for 3KYA

doi:10.18430/M33KYA

Project details

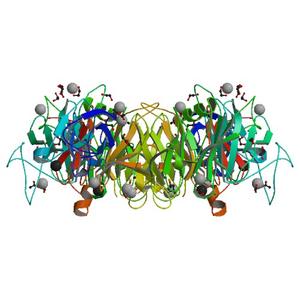

Title Crystal structure of Putative phosphatase (NP_812416.1) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 1.77 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 94.83 x 124.62 x 98.39
Unit cell angles [°] 90.0, 90.0, 90.0

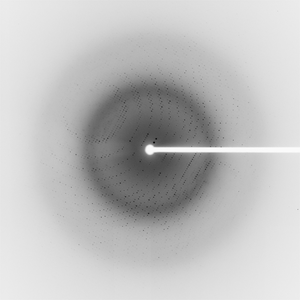

Dataset 107623_1_E1_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 280.0
Wavelength [Å] 0.97966
Experiment Date 2009-01-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

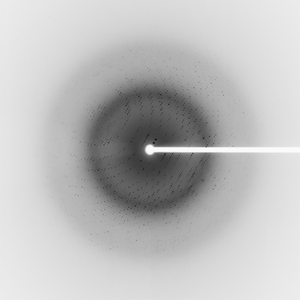

Dataset 107623_1_E2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 280.0
Wavelength [Å] 0.91837
Experiment Date 2009-01-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

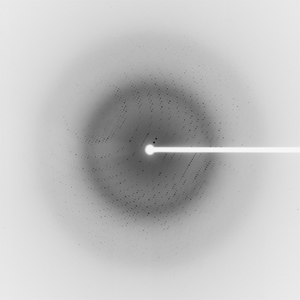

Dataset 107623_2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 280.0
Wavelength [Å] 0.97951
Experiment Date 2009-01-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
