Diffraction project datasets GS13194A_4q69

  • Method: MAD
  • Resolution: 2.5 Å
  • Space group: P 31 2 1
Download all images (8.2 GB)

PDB website for 4Q69
PDB validation report for 4Q69

doi:10.18430/M34Q69

Project details

Title Crystal structure of a SusD homolog (BT2259) from Bacteroides thetaiotaomicron VPI-5482 at 2.50 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 135.12 x 135.12 x 139.57
Unit cell angles [°] 90.0, 90.0, 120.0

Dataset 198553_1_E1_#####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 90.0
Wavelength [Å] 0.97936
Experiment Date 2014-02-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

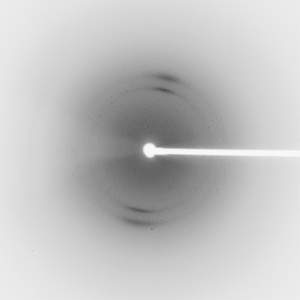

Dataset 198553_1_E2_#####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 90.0
Wavelength [Å] 0.95369
Experiment Date 2014-02-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

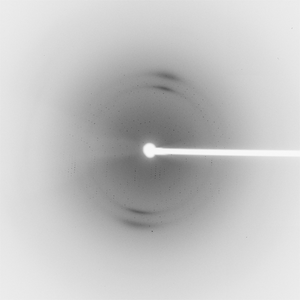

Dataset 198553_2_#####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 90.0
Wavelength [Å] 0.97918
Experiment Date 2014-02-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
