Diffraction project datasets GS13193H_4fr9
Project details
| Title |

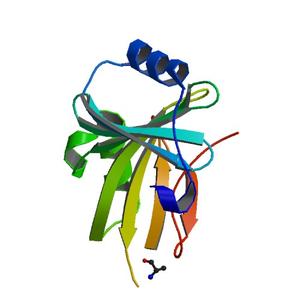

Crystal structure of a BLIP-like protein (BF1215) from Bacteroides fragilis NCTC 9343 at 1.20 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.15 / 0.17 |
| Unit cell edges [Å] |
35.88 x
36.98 x
115.06
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

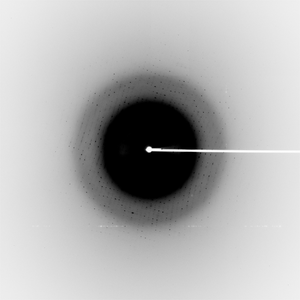

Dataset 180709_1_#####.mccd details
| Number of frames |
480 (1 - 480) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
192.0 |
| Wavelength [Å] |
0.97919 |
| Experiment Date |
2012-04-10 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

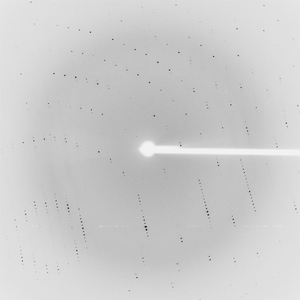

Dataset 180709_2_#####.mccd details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
282.0 |
| Wavelength [Å] |
0.97919 |
| Experiment Date |
2012-04-10 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
