Diffraction project datasets GS13193H_4fr9
- Method: SAD
- Resolution: 1.2 Å
- Space group: P 21 21 21
PDB website for 4FR9
PDB validation report for 4FR9
doi:10.18430/M34FR9
Project details

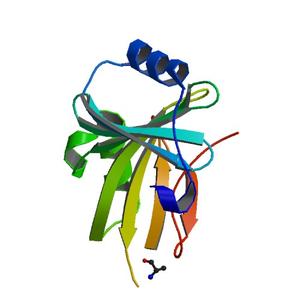

| Title | Crystal structure of a BLIP-like protein (BF1215) from Bacteroides fragilis NCTC 9343 at 1.20 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.15 / 0.17 |
| Unit cell edges [Å] | 35.88 x 36.98 x 115.06 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

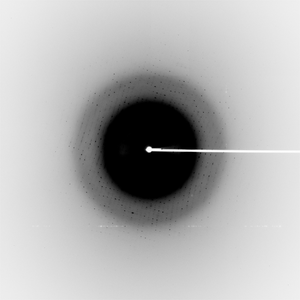

Dataset 180709_1_#####.mccd details
| Number of frames | 480 (1 - 480) |
| Distance [mm] | 150.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 192.0 |
| Wavelength [Å] | 0.97919 |
| Experiment Date | 2012-04-10 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

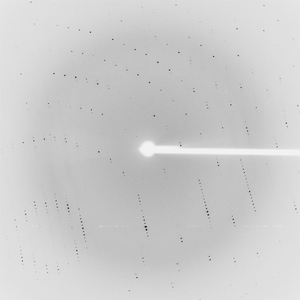

Dataset 180709_2_#####.mccd details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 282.0 |
| Wavelength [Å] | 0.97919 |
| Experiment Date | 2012-04-10 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
