Diffraction project datasets GS13173A_4jhy

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 1 21 1
Download all images (3.2 GB)

PDB website for 4JHY
PDB validation report for 4JHY

doi:10.18430/M34JHY

Project details

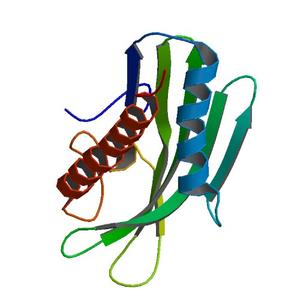

Title Crystal structure of a TBP-like protein (BDI_3606) from Parabacteroides distasonis ATCC 8503 at 1.90 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 26.67 x 82.34 x 40.54
Unit cell angles [°] 90.0, 106.8, 90.0

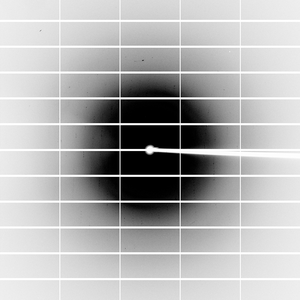

Dataset 192721_1_E1_#####.cbf details

Number of frames 280 (1 - 280)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.97939
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

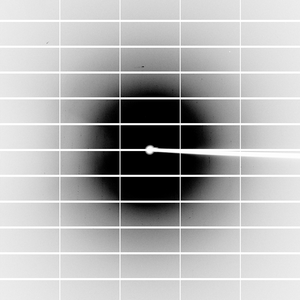

Dataset 192721_1_E2_#####.cbf details

Number of frames 280 (1 - 280)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

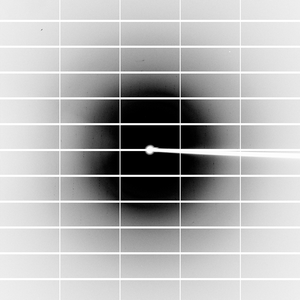

Dataset 192721_2_#####.cbf details

Number of frames 280 (1 - 280)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.97895
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
