Diffraction project datasets GS13115C_3elg

  • Method: SAD
  • Resolution: 1.64 Å
  • Space group: P 1 21 1
Download all images (5.3 GB)

PDB website for 3ELG

doi:10.18430/M33ELG

Project details

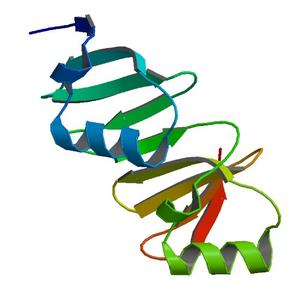

Title Crystal structure of a putative periplasmic protein of unknown function (bvu_2443) from bacteroides vulgatus atcc 8482 at 1.64 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 40.24 x 73.51 x 53.54
Unit cell angles [°] 90.0, 108.4, 90.0

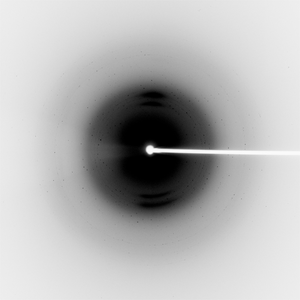

Dataset 91826_1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 320.0
Wavelength [Å] 0.97864
Experiment Date 2008-08-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

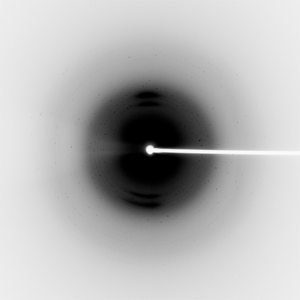

Dataset 91826_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 140.0
Wavelength [Å] 0.97864
Experiment Date 2008-08-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
