Diffraction project datasets GS12090A_3e38

  • Method: SAD
  • Resolution: 2.2 Å
  • Space group: P 21 21 2
Download all images (2.8 GB)

PDB website for 3E38

doi:10.18430/M33E38

Project details

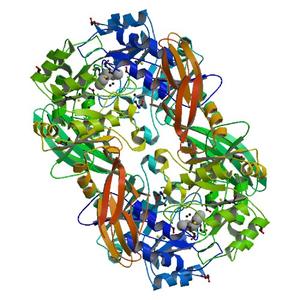

Title CRYSTAL STRUCTURE OF A TWO-DOMAIN PROTEIN CONTAINING PREDICTED PHP-LIKE METAL-DEPENDENT PHOSPHOESTERASE (BVU_3505) FROM BACTEROIDES VULGATUS ATCC 8482 AT 2.20 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.23
Unit cell edges [Å] 95.68 x 117.82 x 79.56
Unit cell angles [°] 90.0, 90.0, 90.0

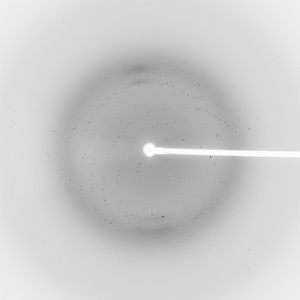

Dataset 83266_1_###.mccd details

Number of frames 90 (221 - 310)
Distance [mm] 325.0
Oscillation width [°] 1.00
Phi [°] 341.0
Wavelength [Å] 0.97894
Experiment Date 2008-04-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
