Diffraction project datasets GN7773A_2pgc
Project details
| Title |

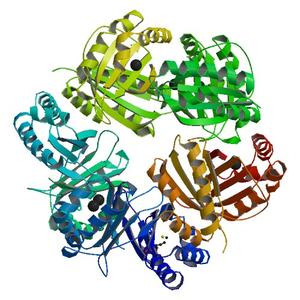

Crystal structure of a a marine metagenome protein (jcvi_pep_1096685590403) from uncultured marine organism at 2.53 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.21 / 0.25 |
| Unit cell edges [Å] |
137.48 x
139.93 x
60.78
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

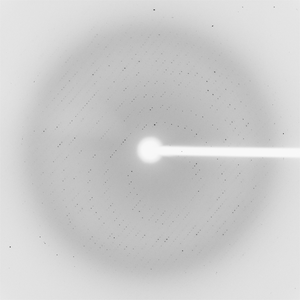

Dataset 34856_1_E1_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
425.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
134.0 |
| Wavelength [Å] |
0.97949 |
| Experiment Date |
2007-03-11 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

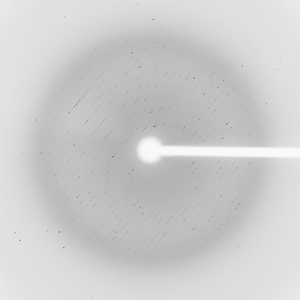

Dataset 34856_1_E2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
425.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
134.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2007-03-11 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

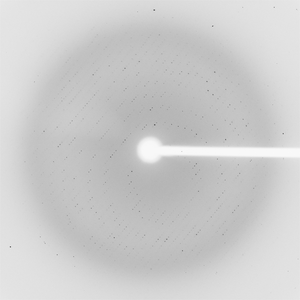

Dataset 34856_2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
425.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
134.0 |
| Wavelength [Å] |
0.97920 |
| Experiment Date |
2007-03-11 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
