Diffraction project datasets GN7757A_2od6

  • Method: MAD
  • Resolution: 1.85 Å
  • Space group: P 21 21 21
Download all images (4.1 GB)

PDB website for 2OD6
PDB validation report for 2OD6

doi:10.18430/M32OD6

Project details

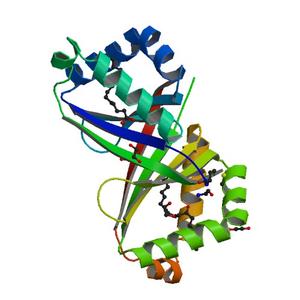

Title Crystal structure of a dimeric ferredoxin-like protein (jcvi_pep_1096682647733) from uncultured marine organism at 1.85 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.23
Unit cell edges [Å] 36.43 x 92.84 x 144.93
Unit cell angles [°] 90.0, 90.0, 90.0

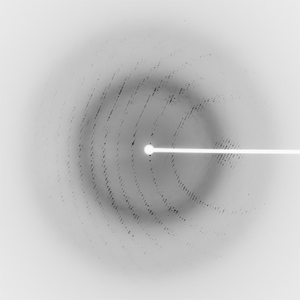

Dataset 36184_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 97.0
Wavelength [Å] 0.97972
Experiment Date 2006-11-19
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

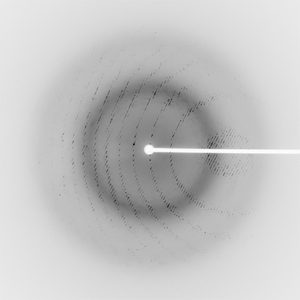

Dataset 36184_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 97.0
Wavelength [Å] 0.91837
Experiment Date 2006-11-19
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

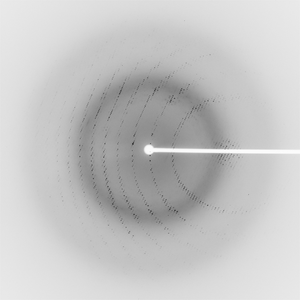

Dataset 36184_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 97.0
Wavelength [Å] 0.97944
Experiment Date 2006-11-19
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
