Diffraction project datasets GN7747A_2od5

  • Method: MAD
  • Resolution: 1.79 Å
  • Space group: P 62 2 2
Download all images (6.2 GB)

PDB website for 2OD5
PDB validation report for 2OD5

doi:10.18430/M32OD5

Project details

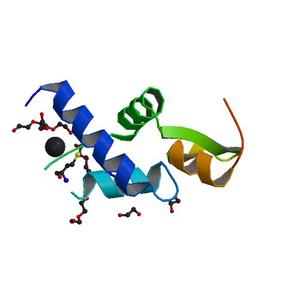

Title CRYSTAL STRUCTURE OF A PUTATIVE NUCLEIC ACID BINDING PROTEIN (JCVI_PEP_1096688149193) FROM UNCULTURED MARINE ORGANISM AT 1.79 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.21
Unit cell edges [Å] 64.41 x 64.41 x 133.25
Unit cell angles [°] 90.0, 90.0, 120.0

Dataset 36135_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 80.0
Wavelength [Å] 0.97971
Experiment Date 2006-11-19
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

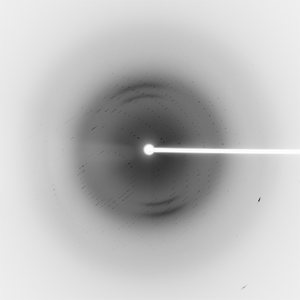

Dataset 36135_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 80.0
Wavelength [Å] 0.91837
Experiment Date 2006-11-19
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

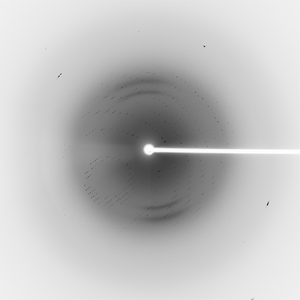

Dataset 36135_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 80.0
Wavelength [Å] 0.97937
Experiment Date 2006-11-19
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
