Diffraction project datasets GN7738A_2od4
Project details
| Title |

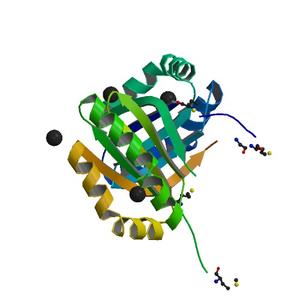

Crystal structure of a dimeric ferredoxin-like protein (jcvi_pep_1096665735785) from uncultured marine organism at 1.70 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.16 / 0.19 |
| Unit cell edges [Å] |
31.89 x
77.79 x
43.81
|
| Unit cell angles [°] |
90.0,
102.7,
90.0
|
Dataset 36121_1_E1_###.mccd details
| Number of frames |
150 (1 - 150) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
1.0 |
| Wavelength [Å] |
0.97966 |
| Experiment Date |
2006-11-19 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

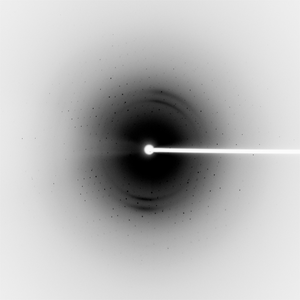

Dataset 36121_1_E2_###.mccd details
| Number of frames |
150 (1 - 150) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
1.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2006-11-19 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

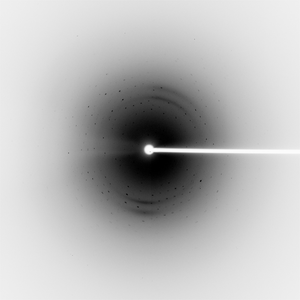

Dataset 36121_2_###.mccd details
| Number of frames |
150 (1 - 150) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
1.0 |
| Wavelength [Å] |
0.97937 |
| Experiment Date |
2006-11-19 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
