Diffraction project datasets GN7729A_3by7
- Method: MAD
- Resolution: 2.6 Å
- Space group: C 1 2 1
PDB website for 3BY7
PDB validation report for 3BY7
doi:10.18430/M33BY7
Project details

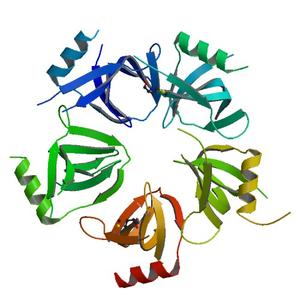

| Title | CRYSTAL STRUCTURE OF A PROTEIN STRUCTURALLY SIMILAR TO SM/LSM-LIKE RNA-BINDING PROTEINS (JCVI_PEP_1096686650277) FROM UNCULTURED MARINE ORGANISM AT 2.60 A RESOLUTION |
| Authors | Das, D., Kozbial, P., Axelrod, H.L., Miller, M.D., McMullan, D., Krishna, S.S., Abdubek, P., Acosta, C., Astakhova, T., Burra, P., Carlton, D., Chen, C., Chiu, H.J., Clayton, T., Deller, M.C., Duan, L., Elias, Y., Elsliger, M.A., Ernst, D., Farr, C., Feuerhelm, J., Grzechnik, A., Grzechnik, S.K., Hale, J., Han, G.W., Jaroszewski, L., Jin, K.K., Johnson, H.A., Klock, H.E., Knuth, M.W., Kumar, A., Marciano, D., Morse, A.T., Murphy, K.D., Nigoghossian, E., Nopakun, A., Okach, L., Oommachen, S., Paulsen, J., Puckett, C., Reyes, R., Rife, C.L., Sefcovic, N., Sudek, S., Tien, H., Trame, C., Trout, C.V., van den Bedem, H., Weekes, D., White, A., Xu, Q., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.24 / 0.29 |
| Unit cell edges [Å] | 108.25 x 77.18 x 71.47 |
| Unit cell angles [°] | 90.0, 113.8, 90.0 |

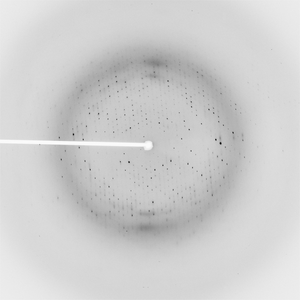

Dataset 58458_1_E1.#### details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 143.0 |
| Wavelength [Å] | 0.97957 |
| Experiment Date | 2007-08-19 |
| Equipment | 23-ID-D at APS (Advanced Photon Source) |

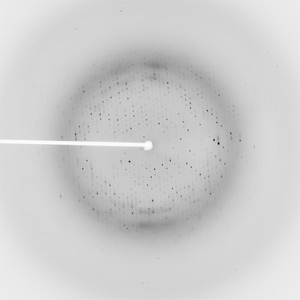

Dataset 58458_1_E2.#### details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 143.0 |
| Wavelength [Å] | 0.95373 |
| Experiment Date | 2007-08-19 |
| Equipment | 23-ID-D at APS (Advanced Photon Source) |

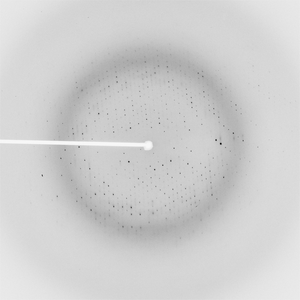

Dataset 58458_2.#### details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 143.0 |
| Wavelength [Å] | 0.97942 |
| Experiment Date | 2007-08-19 |
| Equipment | 23-ID-D at APS (Advanced Photon Source) |

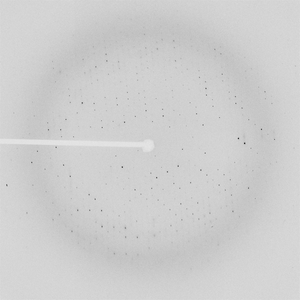

Dataset 58458_3.#### details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 143.0 |
| Wavelength [Å] | 0.97942 |
| Experiment Date | 2007-08-19 |
| Equipment | 23-ID-D at APS (Advanced Photon Source) |
