Diffraction project datasets GID4_7s12
- Resolution: 2.15 Å
- Space group: P 41 21 2
PDB website for 7S12
PDB validation report for 7S12
doi:10.18430/M37S12
Project details
| Title | Crystal structure of GID4 in complex with UBF9092 |
| Authors | Dong, C., Dong, A., Calabrese, M., Wang, F., Owen, D., Arrowsmith, C.H., Edwards, A.M., Min, J., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.22 / 0.27 |
| Unit cell edges [Å] | 40.11 x 40.11 x 201.00 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

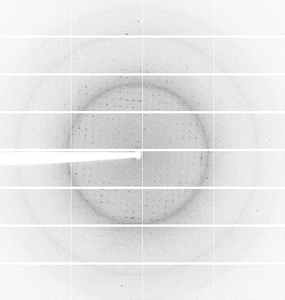

Dataset JV110_20190812-v2_683_master.h5@##### details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | 172.35 |
| Wavelength [Å] | 0.97933 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
