Diffraction project datasets GE8810CD_3lwf

  • Method: MAD
  • Resolution: 2.06 Å
  • Space group: C 1 2 1
Download all images (5.7 GB)

PDB website for 3LWF
PDB validation report for 3LWF

doi:10.18430/M33LWF

Project details

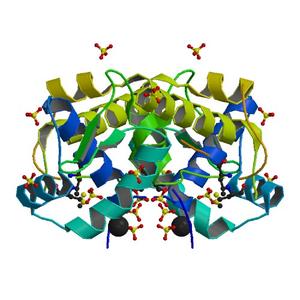

Title Crystal structure of Putative transcriptional regulator (NP_470886.1) from LISTERIA INNOCUA at 2.06 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 108.96 x 115.78 x 75.93
Unit cell angles [°] 90.0, 120.7, 90.0

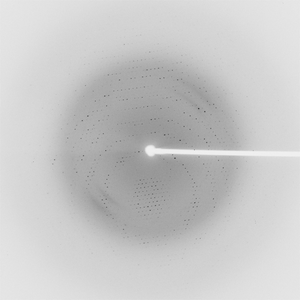

Dataset 143501_1_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 35.0
Wavelength [Å] 0.97925
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

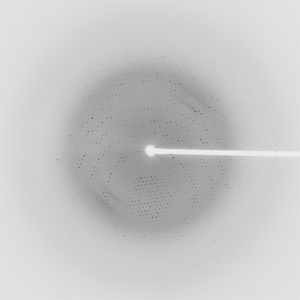

Dataset 143501_1_E2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 35.0
Wavelength [Å] 0.91837
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

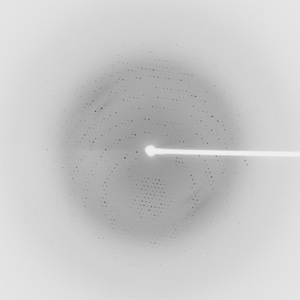

Dataset 143501_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 215.0
Wavelength [Å] 0.97898
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
