Diffraction project datasets GE2184A_4rvo
Project details
| Title |
Crystal structure of a Putative Acyl-CoA ligase (BT_0428) from Bacteroides thetaiotaomicron VPI-5482 at 2.41 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.19 / 0.21 |
| Unit cell edges [Å] |
127.24 x
210.22 x
71.50
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

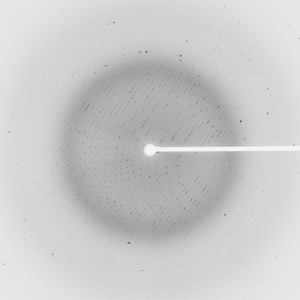

Dataset 151230_1_E1_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
41.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2010-03-11 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

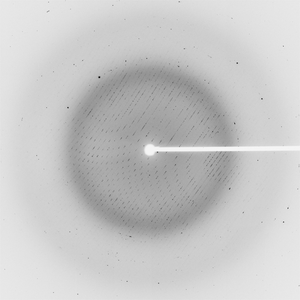

Dataset 151230_1_E2_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
41.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-03-11 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

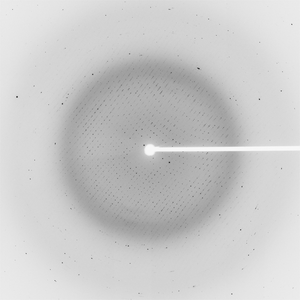

Dataset 151230_2_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
65.51 |
| Wavelength [Å] |
0.97925 |
| Experiment Date |
2010-03-11 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

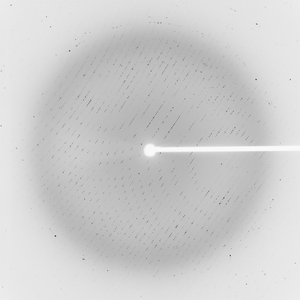

Dataset 151230_3_E1_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
63.0 |
| Wavelength [Å] |
1.27683 |
| Experiment Date |
2010-03-12 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

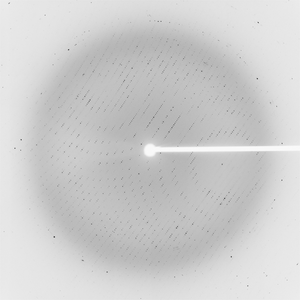

Dataset 151230_3_E2_####.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
63.0 |
| Wavelength [Å] |
1.29011 |
| Experiment Date |
2010-03-12 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
