Diffraction project datasets GD9765C_3edo

  • Method: SAD
  • Resolution: 1.2 Å
  • Space group: P 21 21 21
Download all images (5.5 GB)

PDB website for 3EDO

doi:10.18430/M33EDO

Project details

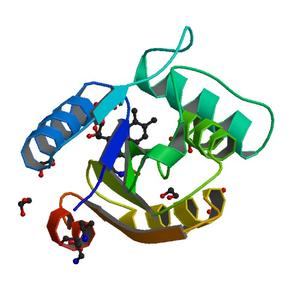

Title Crystal structure of Flavoprotein in Complex with FMN (YP_193882.1) from Lactobacillus acidophilus NCFM at 1.20 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 44.56 x 52.03 x 156.75
Unit cell angles [°] 90.0, 90.0, 90.0

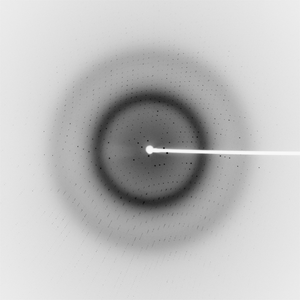

Dataset 85341_0_###.mccd details

Number of frames 31 (1 - 31)
Distance [mm] 200.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97908
Experiment Date 2008-05-13
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

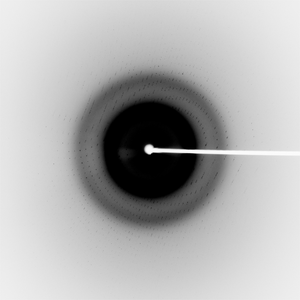

Dataset 85341_1_###.mccd details

Number of frames 46 (1 - 46)
Distance [mm] 150.0
Oscillation width [°] 1.00
Phi [°] 58.0
Wavelength [Å] 0.97910
Experiment Date 2008-05-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

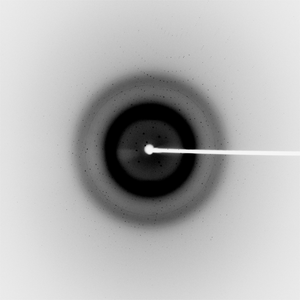

Dataset 85341_2_###.mccd details

Number of frames 225 (1 - 225)
Distance [mm] 150.0
Oscillation width [°] 0.20
Phi [°] 103.0
Wavelength [Å] 0.97910
Experiment Date 2008-05-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

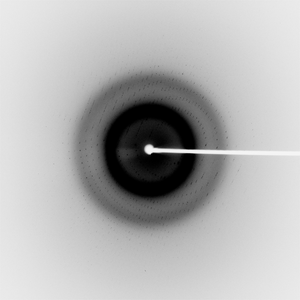

Dataset 85341_3_###.mccd details

Number of frames 46 (1 - 46)
Distance [mm] 150.0
Oscillation width [°] 1.00
Phi [°] 58.0
Wavelength [Å] 0.97910
Experiment Date 2008-05-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

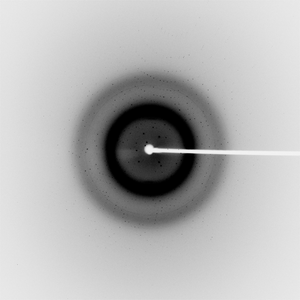

Dataset 85341_4_###.mccd details

Number of frames 51 (1 - 51)
Distance [mm] 150.0
Oscillation width [°] 0.20
Phi [°] 103.0
Wavelength [Å] 0.97910
Experiment Date 2008-05-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
