Diffraction project datasets GD4050C_3dao

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 41 21 2
Download all images (4.4 GB)

PDB website for 3DAO
PDB validation report for 3DAO

doi:10.18430/M33DAO

Project details

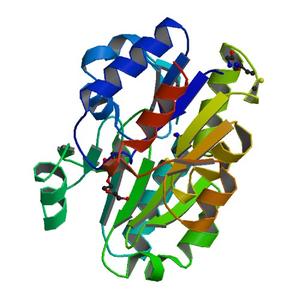

Title CRYSTAL STRUCTURE OF A PUTATIVE PHOSPHATE (EUBREC_1417) FROM EUBACTERIUM RECTALE AT 1.80 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 101.86 x 101.86 x 110.99
Unit cell angles [°] 90.0, 90.0, 90.0

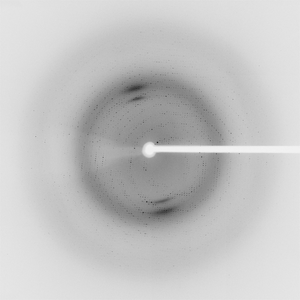

Dataset 84630_1_###.mccd details

Number of frames 129 (1 - 129)
Distance [mm] 250.0
Oscillation width [°] 0.70
Phi [°] 220.0
Wavelength [Å] 0.97915
Experiment Date 2008-05-02
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

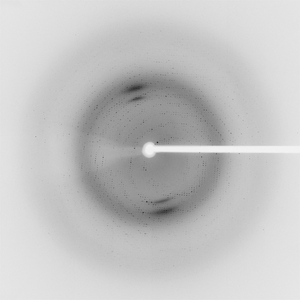

Dataset 84630_2_E1_###.mccd details

Number of frames 129 (1 - 129)
Distance [mm] 250.0
Oscillation width [°] 0.70
Phi [°] 220.0
Wavelength [Å] 0.97929
Experiment Date 2008-05-02
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

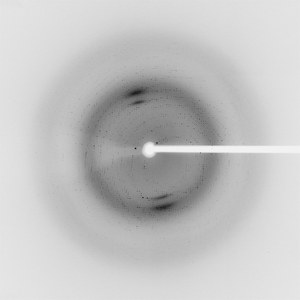

Dataset 84630_2_E2_###.mccd details

Number of frames 129 (1 - 129)
Distance [mm] 250.0
Oscillation width [°] 0.70
Phi [°] 220.0
Wavelength [Å] 0.91162
Experiment Date 2008-05-02
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
