Diffraction project datasets GD14185B_3klb

  • Method: MAD
  • Resolution: 1.75 Å
  • Space group: P 43 21 2
Download all images (2.5 GB)

PDB website for 3KLB
PDB validation report for 3KLB

doi:10.18430/M33KLB

Project details

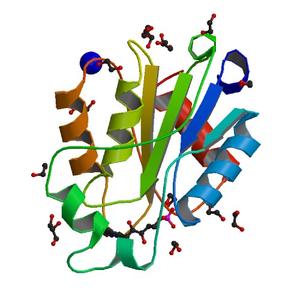

Title Crystal structure of Putative Flavoprotein in Complex with FMN (YP_213683.1) from Bacteroides fragilis NCTC 9343 at 1.75 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 96.76 x 96.76 x 47.88
Unit cell angles [°] 90.0, 90.0, 90.0

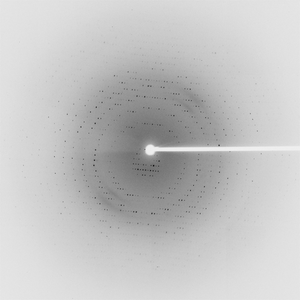

Dataset 120427_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 187.0
Wavelength [Å] 0.97939
Experiment Date 2009-05-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

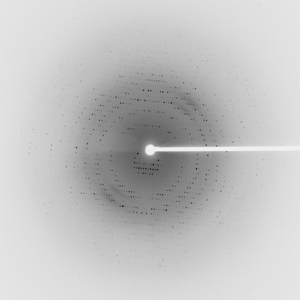

Dataset 120427_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 187.0
Wavelength [Å] 0.91162
Experiment Date 2009-05-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

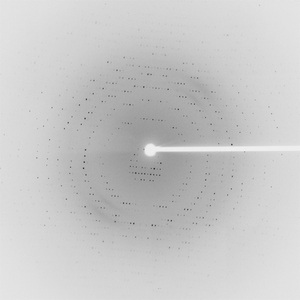

Dataset 120427_2_###.mccd details

Number of frames 50 (1 - 50)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 187.0
Wavelength [Å] 0.97927
Experiment Date 2009-05-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
