Diffraction project datasets GD10876A_3dv8
- Method: SAD
- Resolution: 2.55 Å
- Space group: I 2 2 2
PDB website for 3DV8
PDB validation report for 3DV8
doi:10.18430/M33DV8
Project details

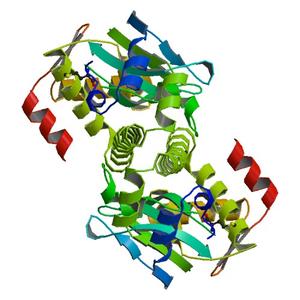

| Title | Crystal structure of a putative transcriptional regulator of the crp/fnr family (eubrec_1222) from eubacterium rectale atcc 33656 at 2.55 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.22 / 0.26 |
| Unit cell edges [Å] | 45.56 x 88.48 x 181.30 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

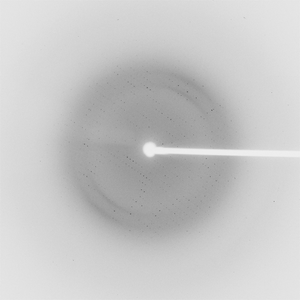

Dataset 87729_1_###.mccd details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 310.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 330.0 |
| Wavelength [Å] | 0.97891 |
| Experiment Date | 2008-06-15 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
