Diffraction project datasets FR15301A_3isy
- Method: MAD
- Resolution: 2.61 Å
- Space group: I 41 2 2
PDB website for 3ISY
PDB validation report for 3ISY
doi:10.18430/M33ISY
Project details

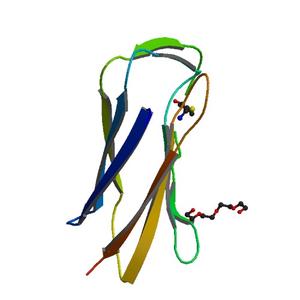

| Title | Crystal structure of an intracellular proteinase inhibitor (ipi, bsu11130) from bacillus subtilis at 2.61 A resolution |
| Authors | Rigden, D.J., Xu, Q., Chang, Y., Eberhardt, R.Y., Finn, R.D., Rawlings, N.D. |
| Bioentity | None |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 73.59 x 73.59 x 132.92 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

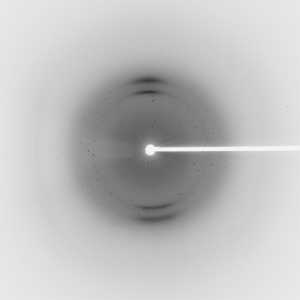

Dataset 120482_1_E1_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 275.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 322.0 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2009-05-14 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

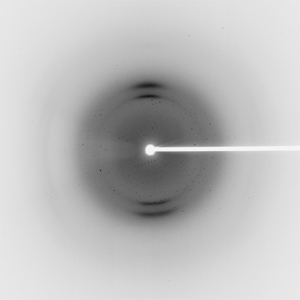

Dataset 120482_1_E2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 275.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 322.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2009-05-14 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
