Diffraction project datasets FR15172B_3iht

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 32 2 1
Download all images (4.3 GB)

PDB website for 3IHT
PDB validation report for 3IHT

doi:10.18430/M33IHT

Project details

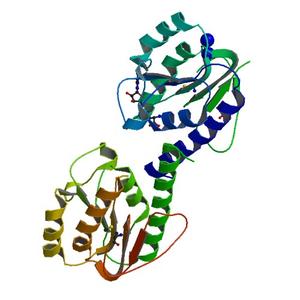

Title Crystal structure of S-adenosyl-L-methionine methyl transferase (YP_165822.1) from SILICIBACTER POMEROYI DSS-3 at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.19
Unit cell edges [Å] 97.57 x 97.57 x 85.81
Unit cell angles [°] 90.0, 90.0, 120.0

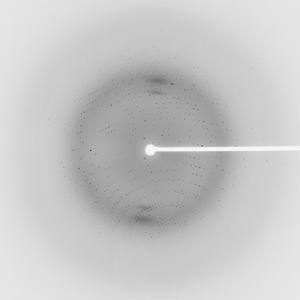

Dataset 119905_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 143.0
Wavelength [Å] 0.97934
Experiment Date 2009-05-14
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

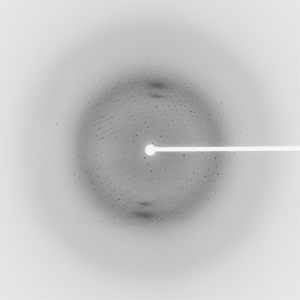

Dataset 119905_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 143.0
Wavelength [Å] 0.91837
Experiment Date 2009-05-14
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

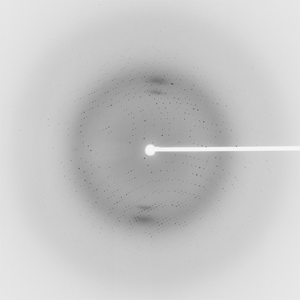

Dataset 119905_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 143.0
Wavelength [Å] 0.97922
Experiment Date 2009-05-14
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
