Diffraction project datasets FR15129A_3k8r

  • Method: MAD
  • Resolution: 2.75 Å
  • Space group: I 4
Download all images (1.7 GB)

PDB website for 3K8R

doi:10.18430/M33K8R

Project details

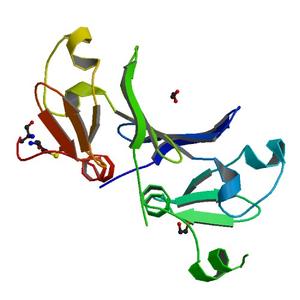

Title Crystal structure of protein of unknown function (YP_427503.1) from Rhodospirillum rubrum ATCC 11170 at 2.75 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.21 / 0.24
Unit cell edges [Å] 111.97 x 111.97 x 45.51
Unit cell angles [°] 90.0, 90.0, 90.0

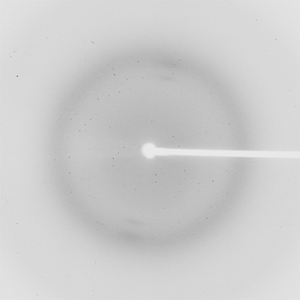

Dataset 127535_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 8.0
Wavelength [Å] 0.97932
Experiment Date 2009-07-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

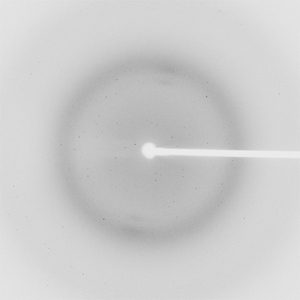

Dataset 127535_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 8.0
Wavelength [Å] 0.91837
Experiment Date 2009-07-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
