Diffraction project datasets FR15091A_3hyn
Project details
| Title |

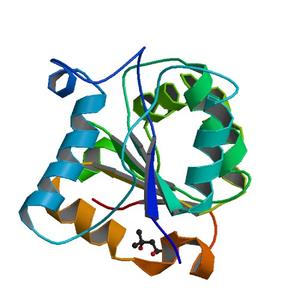

Crystal structure of a putative signal transduction protein (eubrec_0645) from eubacterium rectale atcc 33656 at 1.20 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.12 / 0.14 |
| Unit cell edges [Å] |
34.80 x
60.96 x
76.70
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

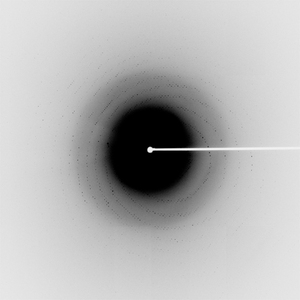

Dataset 121017_1_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
272.0 |
| Wavelength [Å] |
0.97922 |
| Experiment Date |
2009-05-13 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

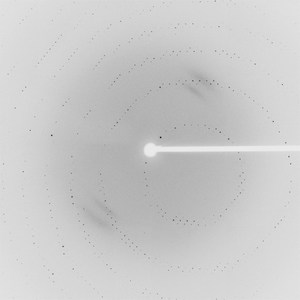

Dataset 121017_2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
272.0 |
| Wavelength [Å] |
0.97922 |
| Experiment Date |
2009-05-13 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
