Diffraction project datasets FR15091A_3hyn
- Method: SAD
- Resolution: 1.2 Å
- Space group: P 21 21 21
PDB website for 3HYN
PDB validation report for 3HYN
doi:10.18430/M33HYN
Project details

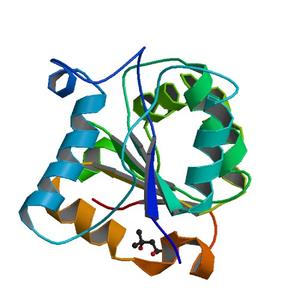

| Title | Crystal structure of a putative signal transduction protein (eubrec_0645) from eubacterium rectale atcc 33656 at 1.20 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.12 / 0.14 |
| Unit cell edges [Å] | 34.80 x 60.96 x 76.70 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

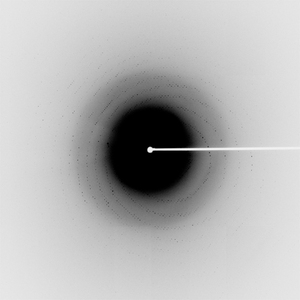

Dataset 121017_1_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 150.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 272.0 |
| Wavelength [Å] | 0.97922 |
| Experiment Date | 2009-05-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

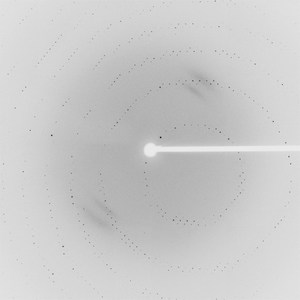

Dataset 121017_2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 272.0 |
| Wavelength [Å] | 0.97922 |
| Experiment Date | 2009-05-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
