Diffraction project datasets FR15002A_4q1z

  • Method: MAD
  • Resolution: 2.5 Å
  • Space group: P 32 2 1
Download all images (2.9 GB)

PDB website for 4Q1Z
PDB validation report for 4Q1Z

doi:10.18430/M34Q1Z

Project details

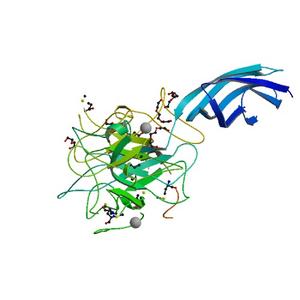

Title Crystal structure of a DUF4876 family protein (BT_1938) from Bacteroides thetaiotaomicron VPI-5482 at 2.50 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 76.20 x 76.20 x 174.72
Unit cell angles [°] 90.0, 90.0, 120.0

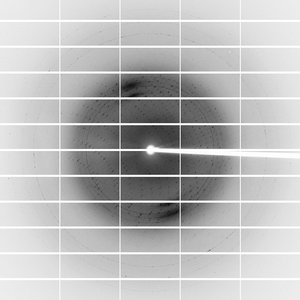

Dataset 132092_1_E1_#####.cbf details

Number of frames 260 (1 - 260)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 50.0
Wavelength [Å] 0.97867
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

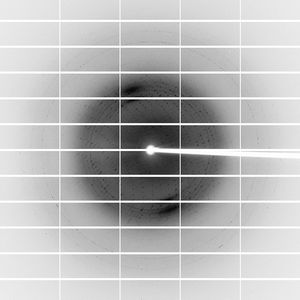

Dataset 132092_1_E2_#####.cbf details

Number of frames 260 (1 - 260)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 50.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

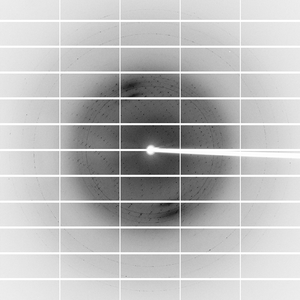

Dataset 132092_2_#####.cbf details

Number of frames 260 (1 - 260)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 50.0
Wavelength [Å] 0.97806
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
