Diffraction project datasets FR14793A_3nuf

  • Method: MAD
  • Resolution: 1.38 Å
  • Space group: P 43 21 2
Download all images (4.4 GB)

PDB website for 3NUF
PDB validation report for 3NUF

doi:10.18430/M33NUF

Project details

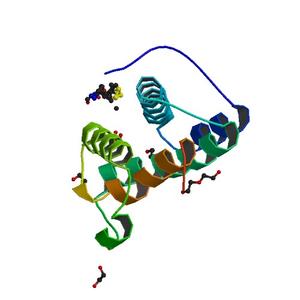

Title Crystal structure of a PRD-containing transcription regulator (LSEI_2718) from Lactobacillus casei ATCC 334 at 1.38 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.19
Unit cell edges [Å] 67.16 x 67.16 x 99.73
Unit cell angles [°] 90.0, 90.0, 90.0

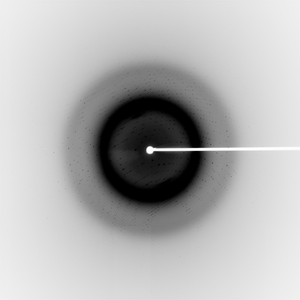

Dataset 139819_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 144.0
Wavelength [Å] 0.97954
Experiment Date 2009-11-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

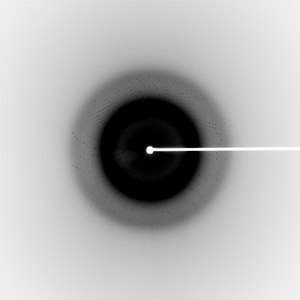

Dataset 139819_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 144.0
Wavelength [Å] 0.91837
Experiment Date 2009-11-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

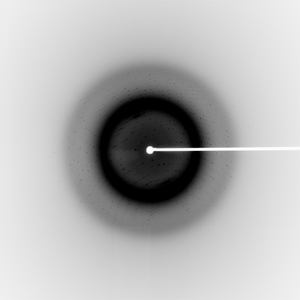

Dataset 139819_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 144.0
Wavelength [Å] 0.97939
Experiment Date 2009-11-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
