Diffraction project datasets FR14737F_3ke2
- Method: MAD
- Resolution: 2.5 Å
- Space group: C 2 2 21
PDB website for 3KE2
PDB validation report for 3KE2
doi:10.18430/M33KE2
Project details

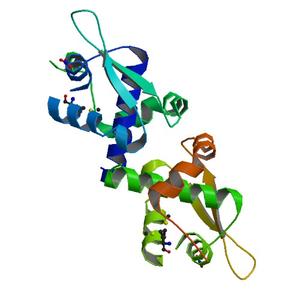

| Title | CRYSTAL STRUCTURE OF a DUF2131 family protein (SAMA_2911) FROM SHEWANELLA AMAZONENSIS SB2B AT 2.50 A RESOLUTION |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.21 / 0.25 |
| Unit cell edges [Å] | 66.48 x 100.51 x 114.58 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

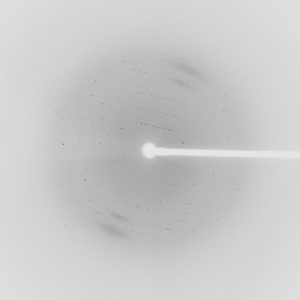

Dataset 126298_1_E1_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 52.0 |
| Wavelength [Å] | 0.97917 |
| Experiment Date | 2009-07-08 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

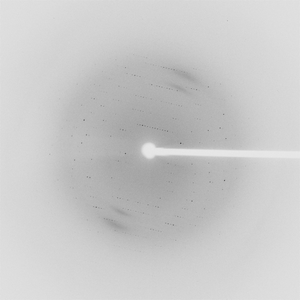

Dataset 126298_1_E2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 52.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2009-07-08 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
