Diffraction project datasets FR14726C_3pl0
- Method: MAD
- Resolution: 1.91 Å
- Space group: P 1 21 1
PDB website for 3PL0
PDB validation report for 3PL0
doi:10.18430/M33PL0
Project details
| Title | Crystal structure of a bsmA homolog (Mpe_A2762) from Methylobium petroleophilum PM1 at 1.91 A resolution |
| Authors | Xu, Q., Grant, J., Chiu, H.J., Farr, C.L., Jaroszewski, L., Knuth, M.W., Miller, M.D., Lesley, S.A., Godzik, A., Elsliger, M.A., Deacon, A.M., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 43.51 x 63.20 x 104.50 |
| Unit cell angles [°] | 90.0, 97.8, 90.0 |

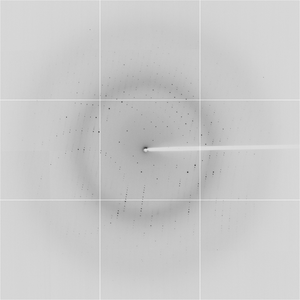

Dataset 136883_1_E1_###.img details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 316.0 |
| Wavelength [Å] | 0.97960 |
| Experiment Date | 2010-09-15 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |

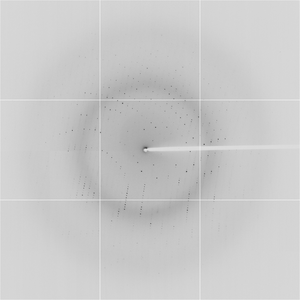

Dataset 136883_1_E2_###.img details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 316.0 |
| Wavelength [Å] | 0.95370 |
| Experiment Date | 2010-09-15 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |

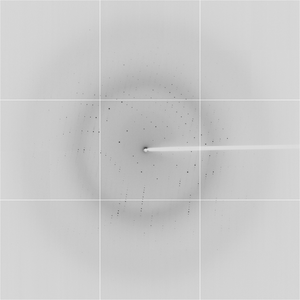

Dataset 136883_2_###.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 316.0 |
| Wavelength [Å] | 0.97930 |
| Experiment Date | 2010-09-15 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |
