Diffraction project datasets FR14724A_3k93
- Method: MAD
- Resolution: 2.15 Å
- Space group: P 3 2 1
PDB website for 3K93
PDB validation report for 3K93
doi:10.18430/M33K93
Project details

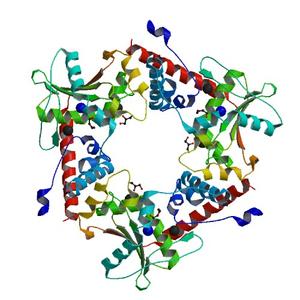

| Title | Crystal structure of phage related exonuclease (YP_719632.1) from HAEMOPHILUS SOMNUS 129PT at 2.15 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 113.37 x 113.37 x 42.28 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

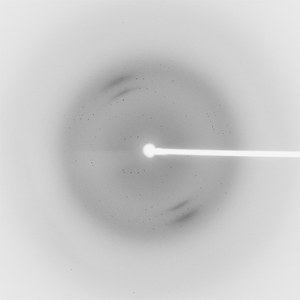

Dataset 125431_1_E1_###.mccd details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 170.0 |
| Wavelength [Å] | 0.97947 |
| Experiment Date | 2009-07-07 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

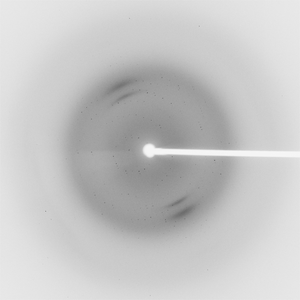

Dataset 125431_1_E2_###.mccd details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 170.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2009-07-07 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
