Diffraction project datasets FP8022C_3siy
Project details
| Title |

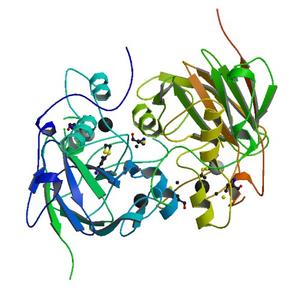

Crystal structure of a DUF1989 family protein (TM1040_0329) from SILICIBACTER SP. TM1040 at 1.35 A resolution |
| Authors |
JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.14 / 0.17 |
| Unit cell edges [Å] |
118.91 x
48.13 x
144.73
|
| Unit cell angles [°] |
90.0,
98.4,
90.0
|

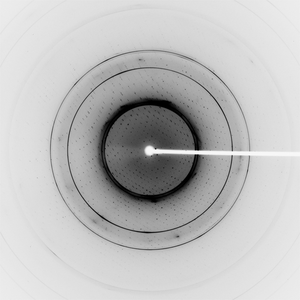

Dataset B4_1_E1_####.mccd details
| Number of frames |
135 (1 - 135) |
| Distance [mm] |
190.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
135.0 |
| Wavelength [Å] |
0.97971 |
| Experiment Date |
2010-02-12 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

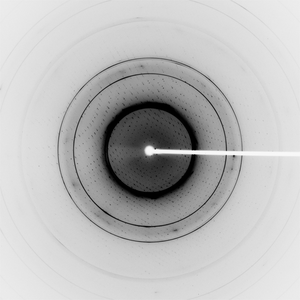

Dataset B4_1_E2_####.mccd details
| Number of frames |
135 (1 - 135) |
| Distance [mm] |
190.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
135.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-02-12 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

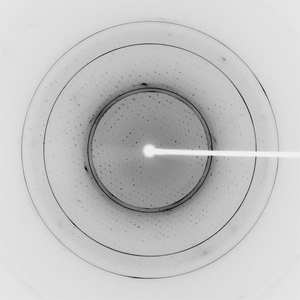

Dataset B4_2_####.mccd details
| Number of frames |
135 (1 - 135) |
| Distance [mm] |
245.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
148.94 |
| Wavelength [Å] |
0.97941 |
| Experiment Date |
2010-02-12 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

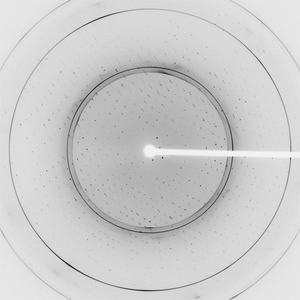

Dataset B4_3_####.mccd details
| Number of frames |
68 (1 - 68) |
| Distance [mm] |
350.1 |
| Oscillation width [°] |
2.00 |
| Phi [°] |
135.5 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-02-12 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

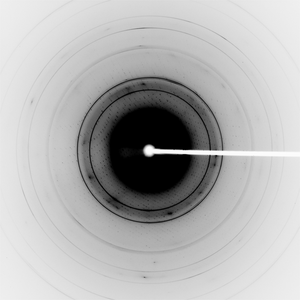

Dataset B4_4_####.mccd details
| Number of frames |
190 (1 - 190) |
| Distance [mm] |
149.9 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
135.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-02-12 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
