Diffraction project datasets FP8022C_3oru

  • Method: MAD
  • Resolution: 1.11 Å
  • Space group: C 2 2 21
Download all images (6.5 GB)

PDB website for 3ORU
PDB validation report for 3ORU

doi:10.18430/M33ORU

Project details

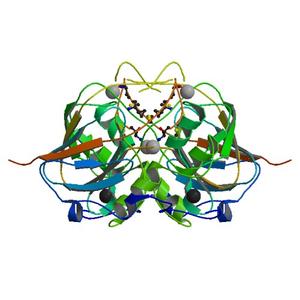

Title Crystal structure of a DUF1989 family protein (TM1040_0329) from SILICIBACTER SP. TM1040 at 1.11 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.13 / 0.15
Unit cell edges [Å] 61.76 x 131.02 x 57.90
Unit cell angles [°] 90.0, 90.0, 90.0

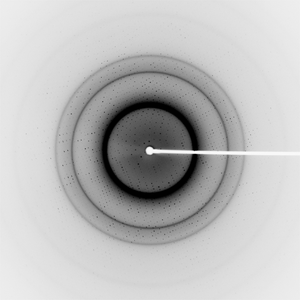

Dataset B1_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 180.0
Oscillation width [°] 1.00
Phi [°] 2.0
Wavelength [Å] 0.97981
Experiment Date 2010-02-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

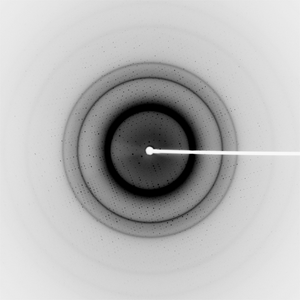

Dataset B1_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 180.0
Oscillation width [°] 1.00
Phi [°] 2.0
Wavelength [Å] 0.91837
Experiment Date 2010-02-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

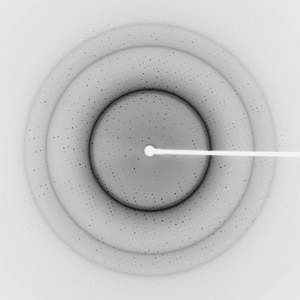

Dataset B1_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 2.0
Wavelength [Å] 0.97944
Experiment Date 2010-02-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
