Diffraction project datasets FP6436A_3fcn

  • Method: MAD
  • Resolution: 1.45 Å
  • Space group: P 21 21 2
Download all images (3.7 GB)

PDB website for 3FCN
PDB validation report for 3FCN

doi:10.18430/M33FCN

Project details

Title Crystal structure of an alpha-helical protein of unknown function (rru_a3208) from rhodospirillum rubrum atcc 11170 at 1.45 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.18
Unit cell edges [Å] 70.71 x 54.56 x 57.25
Unit cell angles [°] 90.0, 90.0, 90.0

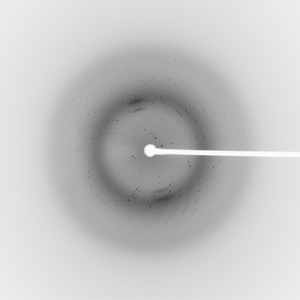

Dataset 100967_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 199.7
Oscillation width [°] 1.00
Phi [°] 226.0
Wavelength [Å] 0.97882
Experiment Date 2008-11-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

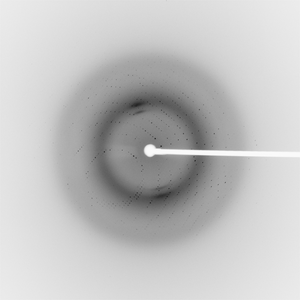

Dataset 100967_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 199.7
Oscillation width [°] 1.00
Phi [°] 226.0
Wavelength [Å] 0.91837
Experiment Date 2008-11-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 100967_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 199.7
Oscillation width [°] 1.00
Phi [°] 226.0
Wavelength [Å] 0.97828
Experiment Date 2008-11-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
