Diffraction project datasets FP4102A_3dkq

  • Method: MAD
  • Resolution: 2.26 Å
  • Space group: P 41 21 2
Download all images (5.6 GB)

PDB website for 3DKQ
PDB validation report for 3DKQ

doi:10.18430/M33DKQ

Project details

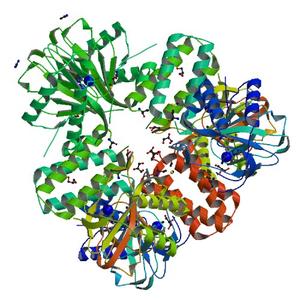

Title Crystal structure of Putative Oxygenase (YP_001051978.1) from SHEWANELLA BALTICA OS155 at 2.26 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.23
Unit cell edges [Å] 153.45 x 153.45 x 84.85
Unit cell angles [°] 90.0, 90.0, 90.0

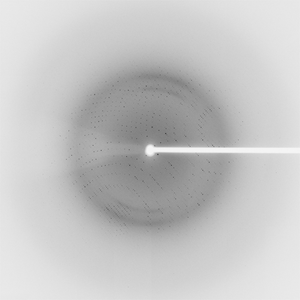

Dataset 81309_1_E1_###.mccd details

Number of frames 155 (1 - 155)
Distance [mm] 290.0
Oscillation width [°] 0.60
Phi [°] 120.0
Wavelength [Å] 0.97932
Experiment Date 2008-03-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

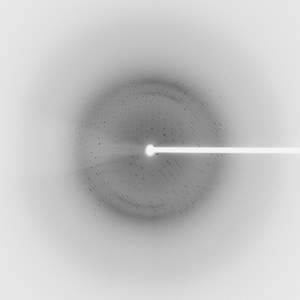

Dataset 81309_1_E2_###.mccd details

Number of frames 155 (1 - 155)
Distance [mm] 290.0
Oscillation width [°] 0.60
Phi [°] 120.0
Wavelength [Å] 0.91162
Experiment Date 2008-03-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

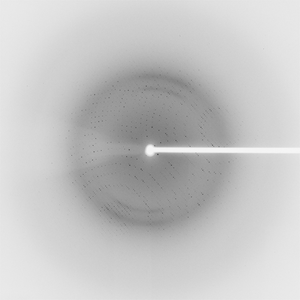

Dataset 81309_2_###.mccd details

Number of frames 155 (1 - 155)
Distance [mm] 290.0
Oscillation width [°] 0.60
Phi [°] 120.0
Wavelength [Å] 0.97918
Experiment Date 2008-03-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
