Diffraction project datasets FP4030W_3cc8

  • Method: MAD
  • Resolution: 1.64 Å
  • Space group: C 1 2 1
Download all images (7.4 GB)

PDB website for 3CC8
PDB validation report for 3CC8

doi:10.18430/M33CC8

Project details

Title Crystal structure of a putative methyltransferase (bce_1332) from bacillus cereus atcc 10987 at 1.64 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 91.22 x 54.40 x 52.75
Unit cell angles [°] 90.0, 109.5, 90.0

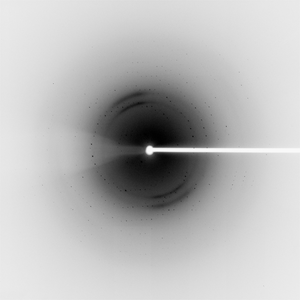

Dataset 72438_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 225.0
Oscillation width [°] 1.00
Phi [°] 79.0
Wavelength [Å] 0.97978
Experiment Date 2008-01-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

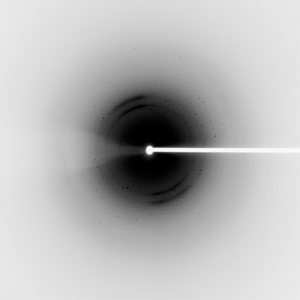

Dataset 72438_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 225.0
Oscillation width [°] 1.00
Phi [°] 79.0
Wavelength [Å] 0.91837
Experiment Date 2008-01-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

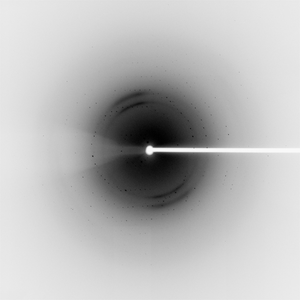

Dataset 72438_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 225.0
Oscillation width [°] 1.00
Phi [°] 79.0
Wavelength [Å] 0.97964
Experiment Date 2008-01-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
