Diffraction project datasets FP2858A_3dcf

  • Method: MAD
  • Resolution: 2.5 Å
  • Space group: P 1 21 1
Download all images (5.7 GB)

PDB website for 3DCF
PDB validation report for 3DCF

doi:10.18430/M33DCF

Project details

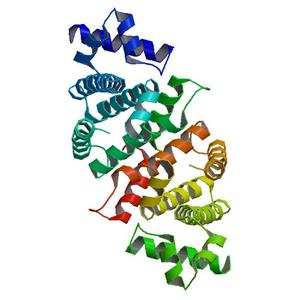

Title Crystal structure of transcriptional regulator of the TetR/AcrR family (YP_290855.1) from THERMOBIFIDA FUSCA YX-ER1 at 2.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.24 / 0.28
Unit cell edges [Å] 47.87 x 67.62 x 72.98
Unit cell angles [°] 90.0, 104.2, 90.0

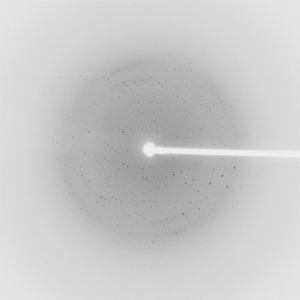

Dataset 85643_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 340.0
Oscillation width [°] 1.00
Phi [°] 160.0
Wavelength [Å] 0.97968
Experiment Date 2008-05-13
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

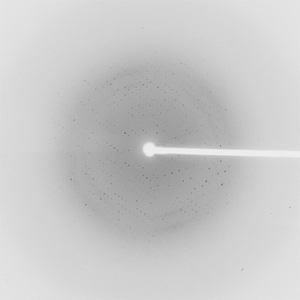

Dataset 85643_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 340.0
Oscillation width [°] 1.00
Phi [°] 160.0
Wavelength [Å] 0.91837
Experiment Date 2008-05-13
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

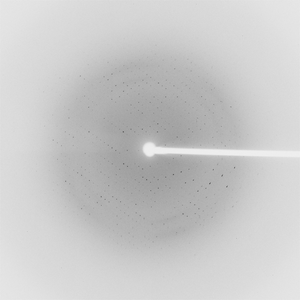

Dataset 85643_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 340.0
Oscillation width [°] 1.00
Phi [°] 160.0
Wavelength [Å] 0.97917
Experiment Date 2008-05-13
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
