Diffraction project datasets FP0823C_3egq

  • Method: MAD
  • Resolution: 2.55 Å
  • Space group: P 21 21 21
Download all images (3.3 GB)

PDB website for 3EGQ
PDB validation report for 3EGQ

doi:10.18430/M33EGQ

Project details

Title Crystal structure of a tetr-family transcriptional regulator (af_1817) from archaeoglobus fulgidus at 2.55 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.24 / 0.28
Unit cell edges [Å] 57.55 x 61.04 x 109.94
Unit cell angles [°] 90.0, 90.0, 90.0

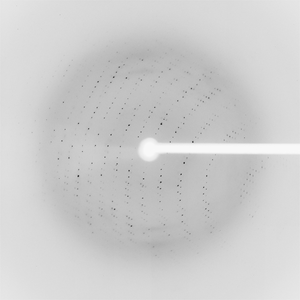

Dataset 83371_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 375.0
Oscillation width [°] 1.00
Phi [°] 63.0
Wavelength [Å] 0.97927
Experiment Date 2008-05-01
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

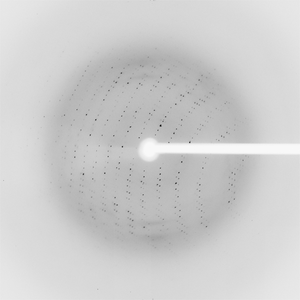

Dataset 83371_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 375.0
Oscillation width [°] 1.00
Phi [°] 63.0
Wavelength [Å] 0.91162
Experiment Date 2008-05-01
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

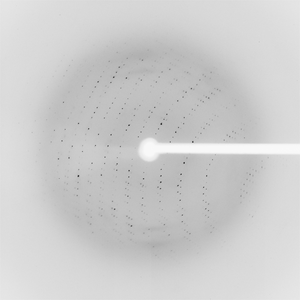

Dataset 83371_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 375.0
Oscillation width [°] 1.00
Phi [°] 63.0
Wavelength [Å] 0.97913
Experiment Date 2008-05-01
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
