Diffraction project datasets FN9311B_3ec4

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 21 21 21
Download all images (4.9 GB)

PDB website for 3EC4
PDB validation report for 3EC4

doi:10.18430/M33EC4

Project details

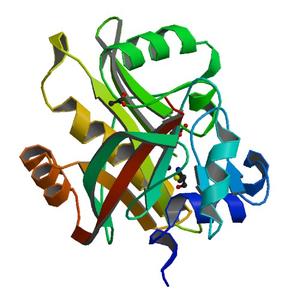

Title Crystal structure of Putative Acetyltransferase from the GNAT family (YP_497011.1) from NOVOSPHINGOBIUM AROMATICIVORANS DSM 12444 at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 44.52 x 63.98 x 143.15
Unit cell angles [°] 90.0, 90.0, 90.0

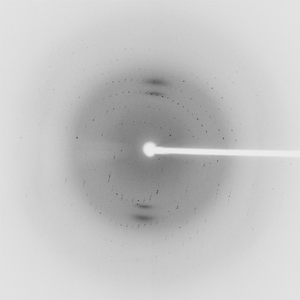

Dataset 90779_1_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 74.0
Wavelength [Å] 0.97837
Experiment Date 2008-07-31
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

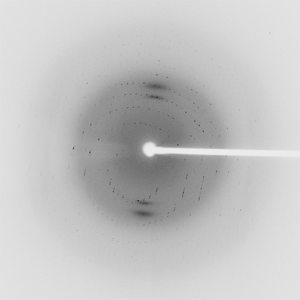

Dataset 90779_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 74.0
Wavelength [Å] 0.91837
Experiment Date 2008-07-31
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

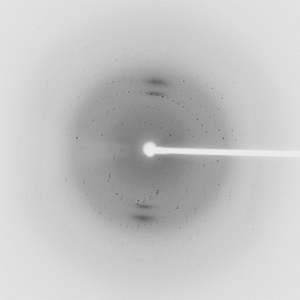

Dataset 90779_3_###.mccd details

Number of frames 57 (1 - 57)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 74.0
Wavelength [Å] 0.97913
Experiment Date 2008-07-31
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
