Diffraction project datasets FN9260E_3bwx
- Method: SAD
- Resolution: 1.5 Å
- Space group: P 21 21 21
PDB website for 3BWX
PDB validation report for 3BWX
doi:10.18430/M33BWX
Project details
| Title | Crystal structure of an alpha/beta hydrolase (YP_496220.1) from Novosphingobium aromaticivorans DSM 12444 at 1.50 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 44.48 x 69.95 x 82.22 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

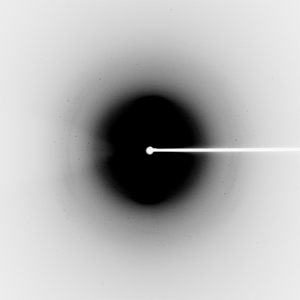

Dataset 69730_1_###.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 60.0 |
| Wavelength [Å] | 0.97908 |
| Experiment Date | 2007-11-25 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

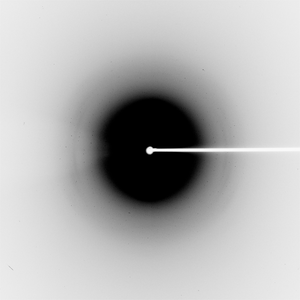

Dataset 69730_2_###.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 60.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2007-11-25 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
