Diffraction project datasets FN7543A_3c5y

  • Method: Molecular Replacement
  • Resolution: 1.81 Å
  • Space group: P 1 21 1
Download all images (10.2 GB)

PDB website for 3C5Y
PDB validation report for 3C5Y

doi:10.18430/M33C5Y

Project details

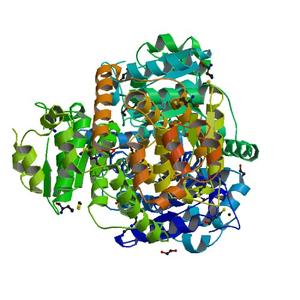

Title Crystal structure of a putative ribose 5-phosphate isomerase (saro_3514) from novosphingobium aromaticivorans dsm at 1.81 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 106.75 x 109.46 x 167.57
Unit cell angles [°] 90.0, 102.9, 90.0

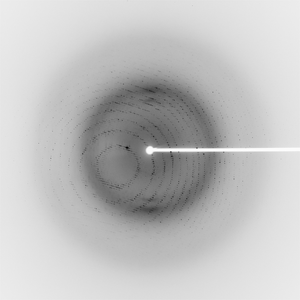

Dataset 70093_1_E1_###.mccd details

Number of frames 220 (1 - 220)
Distance [mm] 235.0
Oscillation width [°] 0.50
Phi [°] 280.0
Wavelength [Å] 0.97941
Experiment Date 2007-12-09
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

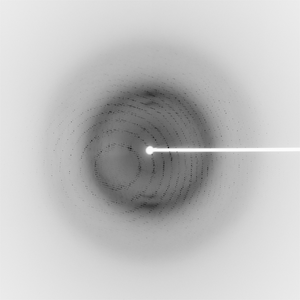

Dataset 70093_1_E2_###.mccd details

Number of frames 220 (1 - 220)
Distance [mm] 235.0
Oscillation width [°] 0.50
Phi [°] 280.0
Wavelength [Å] 0.91837
Experiment Date 2007-12-09
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

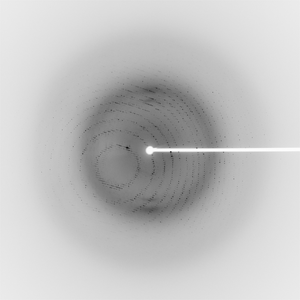

Dataset 70093_2_###.mccd details

Number of frames 220 (1 - 220)
Distance [mm] 235.0
Oscillation width [°] 0.50
Phi [°] 280.0
Wavelength [Å] 0.97882
Experiment Date 2007-12-09
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
