Diffraction project datasets FN7456B_3ck1
Project details
| Title |

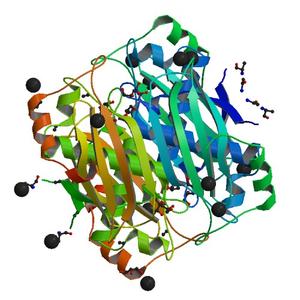

CRYSTAL STRUCTURE OF a putative thioesterase (REUT_A2179) FROM RALSTONIA EUTROPHA JMP134 AT 1.74 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.17 / 0.20 |
| Unit cell edges [Å] |
77.07 x
77.07 x
242.86
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

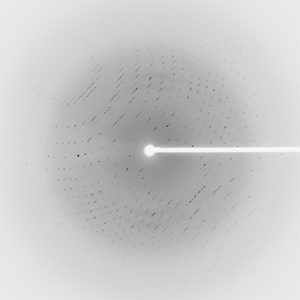

Dataset 67349_1_E1_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
212.0 |
| Wavelength [Å] |
0.97959 |
| Experiment Date |
2007-11-20 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

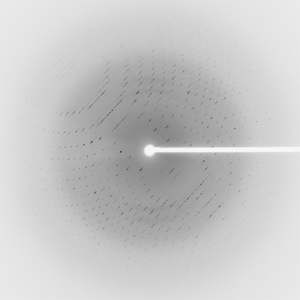

Dataset 67349_1_E2_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
212.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2007-11-20 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

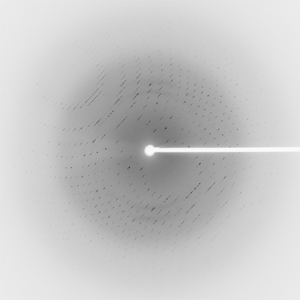

Dataset 67349_2_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
275.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
212.0 |
| Wavelength [Å] |
0.97916 |
| Experiment Date |
2007-11-20 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

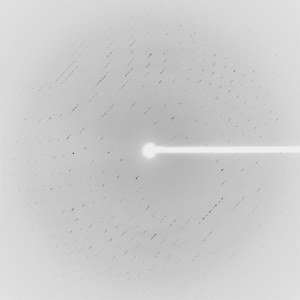

Dataset 67349_3_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
212.0 |
| Wavelength [Å] |
0.97916 |
| Experiment Date |
2007-11-20 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
