Diffraction project datasets FN12626A_3g23
- Method: MAD
- Resolution: 1.89 Å
- Space group: P 21 21 21
PDB website for 3G23
PDB validation report for 3G23
doi:10.18430/M33G23
Project details

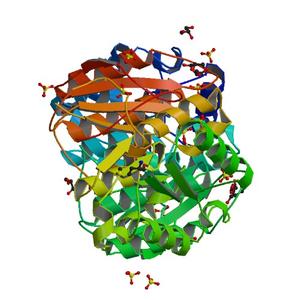

| Title | Crystal structure of a ld-carboxypeptidase a (saro_1426) from novosphingobium aromaticivorans dsm at 1.89 A resolution |
| Authors | Das, D., Herve, M., Elsliger, M.A., Kadam, R.U., Grant, J.C., Chiu, H.J., Knuth, M.W., Klock, H.E., Miller, M.D., Godzik, A., Lesley, S.A., Deacon, A.M., Mengin-Lecreulx, D., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 43.63 x 91.04 x 145.74 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

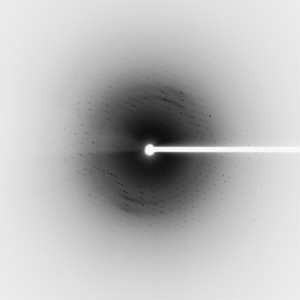

Dataset 103236_1_E1_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 181.0 |
| Wavelength [Å] | 0.97985 |
| Experiment Date | 2008-12-07 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

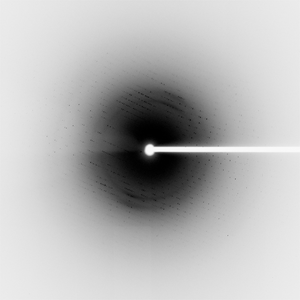

Dataset 103236_1_E2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 181.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2008-12-07 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

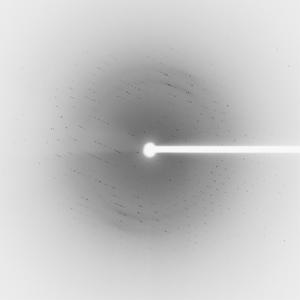

Dataset 103236_3_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 325.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 181.0 |
| Wavelength [Å] | 0.97971 |
| Experiment Date | 2008-12-07 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
