Diffraction project datasets FN12557A_3cnh

  • Method: MAD
  • Resolution: 1.66 Å
  • Space group: P 41 21 2
Download all images (7.1 GB)

PDB website for 3CNH

doi:10.18430/M33CNH

Project details

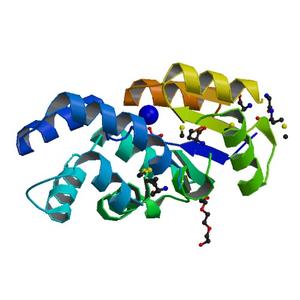

Title Crystal structure of predicted hydrolase of haloacid dehalogenase-like superfamily (NP_295428.1) from Deinococcus radiodurans at 1.66 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 74.11 x 74.11 x 160.92
Unit cell angles [°] 90.0, 90.0, 90.0

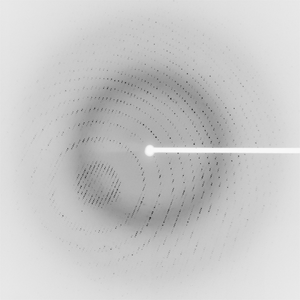

Dataset 77741_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 128.0
Wavelength [Å] 0.97922
Experiment Date 2008-02-21
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

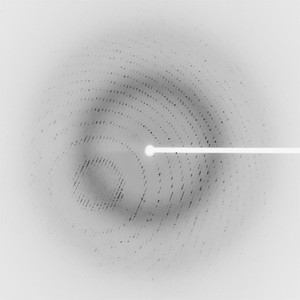

Dataset 77741_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 128.0
Wavelength [Å] 0.91837
Experiment Date 2008-02-21
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

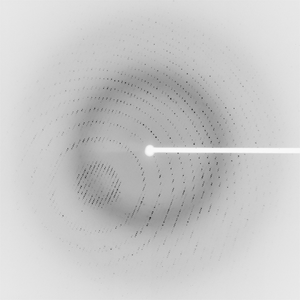

Dataset 77741_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 128.0
Wavelength [Å] 0.97908
Experiment Date 2008-02-21
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
