Diffraction project datasets FN12445A_3d4o
- Method: SAD
- Resolution: 2.1 Å
- Space group: P 1 21 1
PDB website for 3D4O
PDB validation report for 3D4O
doi:10.18430/M33D4O
Project details

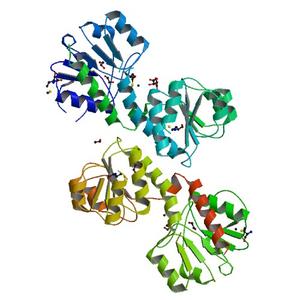

| Title | Crystal structure of dipicolinate synthase subunit A (NP_243269.1) from BACILLUS HALODURANS at 2.10 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 59.65 x 142.42 x 74.86 |
| Unit cell angles [°] | 90.0, 93.5, 90.0 |

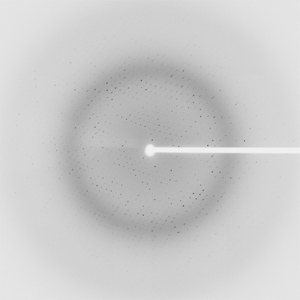

Dataset 81084_1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 53.0 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2008-03-17 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
