Diffraction project datasets FN11125A_3c24
- Method: MAD
- Resolution: 1.62 Å
- Space group: P 21 21 21
PDB website for 3C24
PDB validation report for 3C24
doi:10.18430/M33C24
Project details

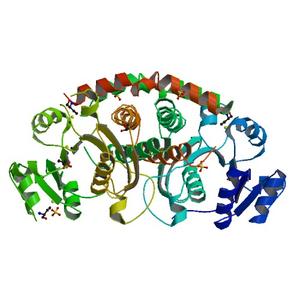

| Title | Crystal structure of a putative oxidoreductase (YP_511008.1) from Jannaschia sp. CCS1 at 1.62 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 47.08 x 80.62 x 142.84 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

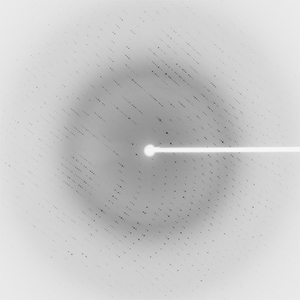

Dataset 66462_1_E1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 103.0 |
| Wavelength [Å] | 0.97966 |
| Experiment Date | 2007-11-20 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

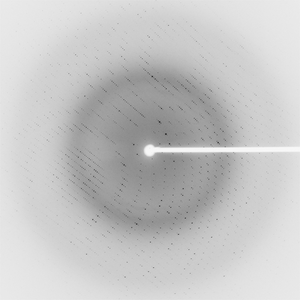

Dataset 66462_1_E2_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 103.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2007-11-20 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
