Diffraction project datasets FN10833A_3gff

  • Method: MAD
  • Resolution: 2.12 Å
  • Space group: P 1 21 1
Download all images (2.4 GB)

PDB website for 3GFF
PDB validation report for 3GFF

doi:10.18430/M33GFF

Project details

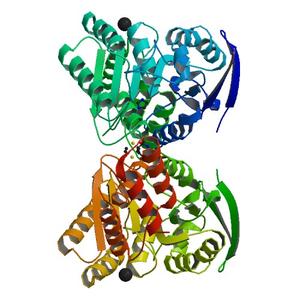

Title Crystal structure of IroE-like serine hydrolase (NP_718593.1) from SHEWANELLA ONEIDENSIS at 2.12 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.24
Unit cell edges [Å] 53.65 x 125.57 x 56.75
Unit cell angles [°] 90.0, 117.9, 90.0

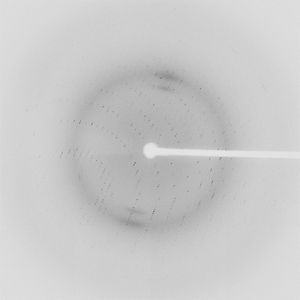

Dataset 102352_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 180.0
Wavelength [Å] 0.97864
Experiment Date 2008-11-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

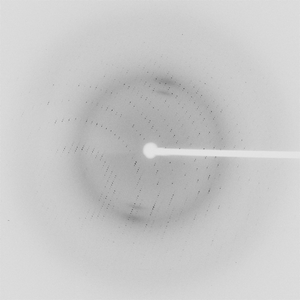

Dataset 102352_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 180.0
Wavelength [Å] 0.91162
Experiment Date 2008-11-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

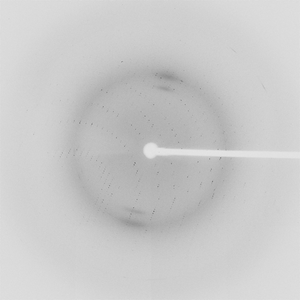

Dataset 102352_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 180.0
Wavelength [Å] 0.97824
Experiment Date 2008-11-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
