Diffraction project datasets FN0547A_3ing

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: C 2 2 21
Download all images (3.1 GB)

PDB website for 3ING
PDB validation report for 3ING

doi:10.18430/M33ING

Project details

Title Crystal structure of Homoserine dehydrogenase (NP_394635.1) from THERMOPLASMA ACIDOPHILUM at 1.95 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.19
Unit cell edges [Å] 69.82 x 92.11 x 120.79
Unit cell angles [°] 90.0, 90.0, 90.0

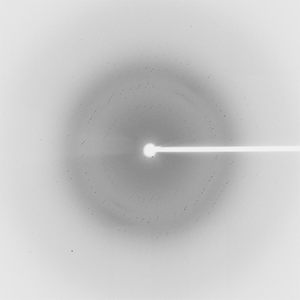

Dataset 113120_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 103.0
Wavelength [Å] 0.97927
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

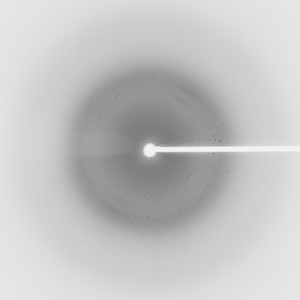

Dataset 113120_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 103.0
Wavelength [Å] 0.91162
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

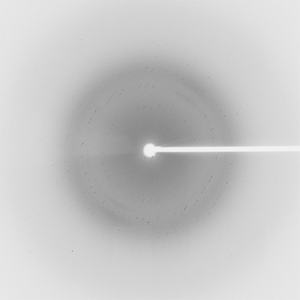

Dataset 113120_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 103.0
Wavelength [Å] 0.97908
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
