Diffraction project datasets FN0414A_3cea

  • Method: MAD
  • Resolution: 2.4 Å
  • Space group: P 1 21 1
Download all images (7.2 GB)

PDB website for 3CEA
PDB validation report for 3CEA

doi:10.18430/M33CEA

Project details

Title Crystal structure of myo-inositol 2-dehydrogenase (NP_786804.1) from Lactobacillus plantarum at 2.40 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 47.33 x 145.68 x 100.21
Unit cell angles [°] 90.0, 91.9, 90.0

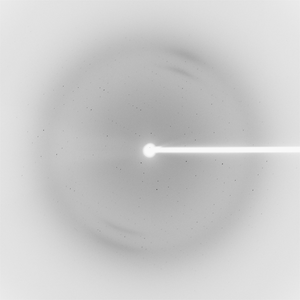

Dataset 68112_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 347.0
Wavelength [Å] 0.97941
Experiment Date 2007-12-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

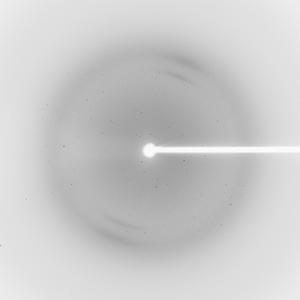

Dataset 68112_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 347.0
Wavelength [Å] 0.91837
Experiment Date 2007-12-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

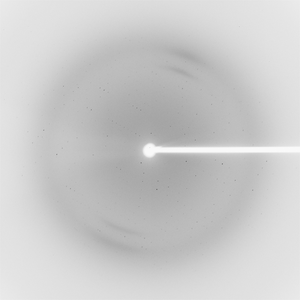

Dataset 68112_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 347.0
Wavelength [Å] 0.97883
Experiment Date 2007-12-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

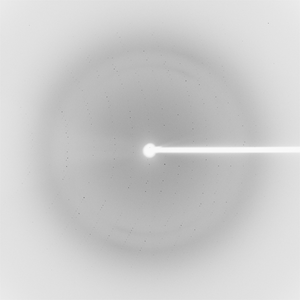

Dataset 68112_3_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 70.61
Wavelength [Å] 0.97941
Experiment Date 2007-12-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

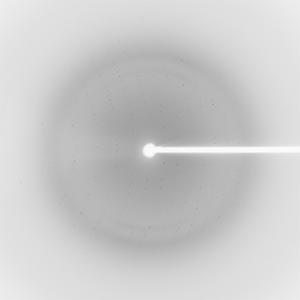

Dataset 68112_3_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 70.61
Wavelength [Å] 0.91837
Experiment Date 2007-12-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

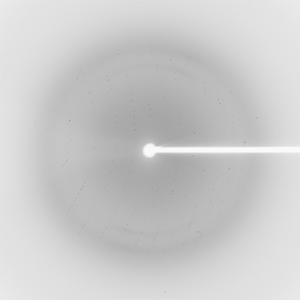

Dataset 68112_4_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 73.41
Wavelength [Å] 0.97883
Experiment Date 2007-12-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
