Diffraction project datasets FM12207A_3c18
Project details
| Title |

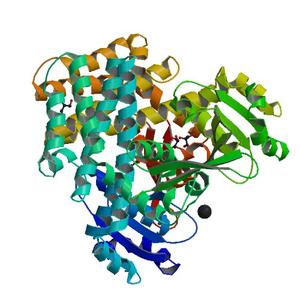

Crystal structure of nucleotidyltransferase-like protein (ZP_00538802.1) from Exiguobacterium sibiricum 255-15 at 1.90 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.23 |
| Unit cell edges [Å] |
66.74 x
66.74 x
456.20
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

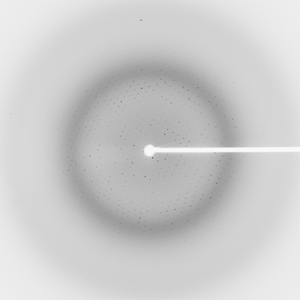

Dataset 70568_1_E1_####.mccd details
| Number of frames |
201 (1000 - 1200) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.10 |
| Phi [°] |
45.9 |
| Wavelength [Å] |
0.97951 |
| Experiment Date |
2007-12-05 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

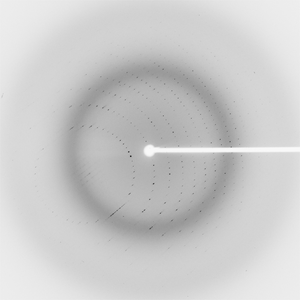

Dataset 70568_1_E1_###.mccd details
| Number of frames |
999 (1 - 999) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.10 |
| Phi [°] |
306.0 |
| Wavelength [Å] |
0.97951 |
| Experiment Date |
2007-12-05 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

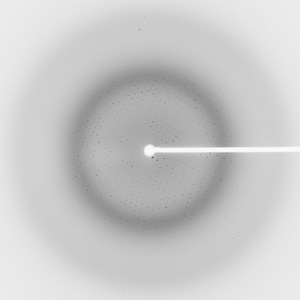

Dataset 70568_1_E2_####.mccd details
| Number of frames |
201 (1000 - 1200) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.10 |
| Phi [°] |
45.9 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2007-12-05 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

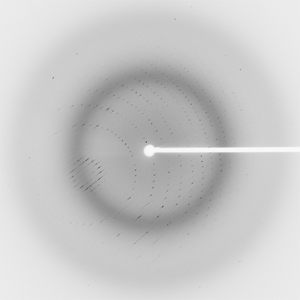

Dataset 70568_1_E2_###.mccd details
| Number of frames |
999 (1 - 999) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.10 |
| Phi [°] |
306.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2007-12-05 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
