Diffraction project datasets FM12098A_2rcc

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: C 1 2 1
Download all images (12.1 GB)

PDB website for 2RCC

doi:10.18430/M32RCC

Project details

Title Crystal structure of putative class I ribonucleotide reductase (NP_241368.1) from Bacillus halodurans at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 175.26 x 72.78 x 111.77
Unit cell angles [°] 90.0, 124.9, 90.0

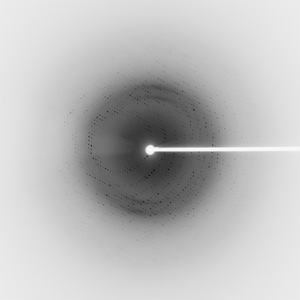

Dataset 57375_1_E1_###.mccd details

Number of frames 300 (1 - 300)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 2.0
Wavelength [Å] 0.97926
Experiment Date 2007-07-26
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

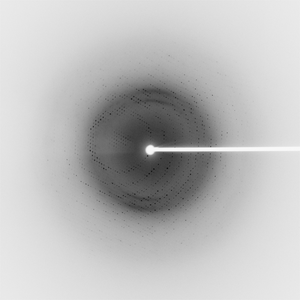

Dataset 57375_1_E2_###.mccd details

Number of frames 300 (1 - 300)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 2.0
Wavelength [Å] 0.91837
Experiment Date 2007-07-26
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

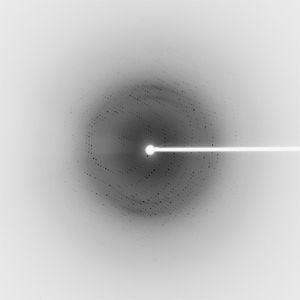

Dataset 57375_2_###.mccd details

Number of frames 300 (1 - 300)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 2.0
Wavelength [Å] 0.97898
Experiment Date 2007-07-26
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
