Diffraction project datasets FM11897A_3dfe

  • Method: MAD
  • Resolution: 2.35 Å
  • Space group: P 1 21 1
Download all images (5.0 GB)

PDB website for 3DFE

doi:10.18430/M33DFE

Project details

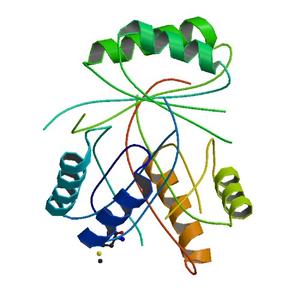

Title Crystal structure of a Putative Pii-Like Signaling Protein (YP_323533.1) from ANABAENA VARIABILIS ATCC 29413 at 2.35 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.22 / 0.27
Unit cell edges [Å] 63.49 x 78.75 x 65.54
Unit cell angles [°] 90.0, 100.6, 90.0

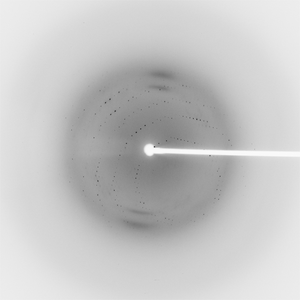

Dataset 82295_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 173.0
Wavelength [Å] 0.97854
Experiment Date 2008-04-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

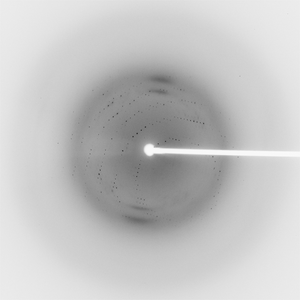

Dataset 82295_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 173.0
Wavelength [Å] 0.91837
Experiment Date 2008-04-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
